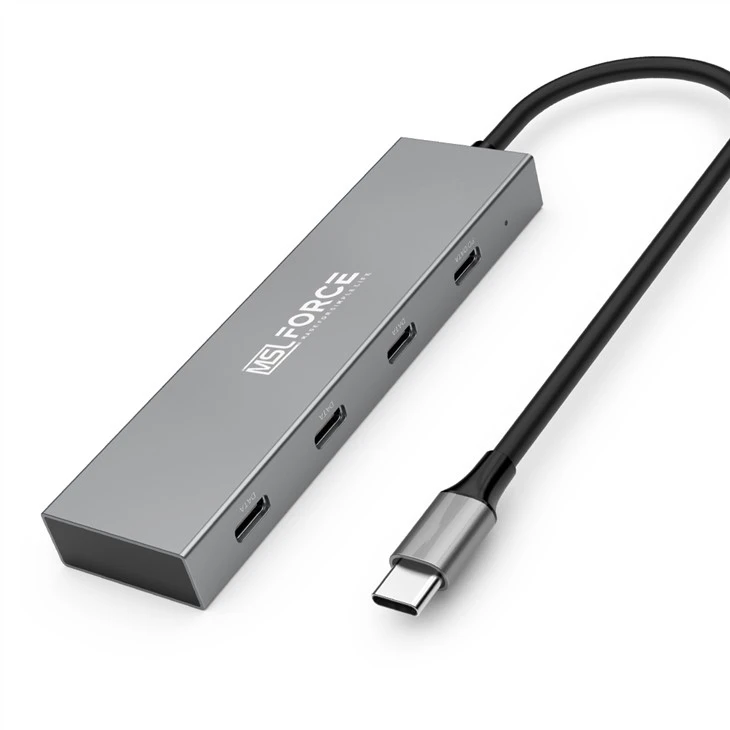

USB3.2 GEN2 4Ports 10Gbps USB HUB Nrog TYPE-C PD 100W Passthrough Power
Hauj lwm lawm
Kev tsis
USB 3.2 Gen 2x2– Nws yog dab tsi?
Tsis ntev dhau los, cov lus qhia tshwj xeeb USB 3.1 Gen 1 thiab USB 3.1 Gen 2 tau muaj ntau. Tom qab ntawd USB-IF txiav txim siab hloov lub npe: USB 3.1 Gen 2 los ua USB 3.2 Gen 2. Lub npe&"; USB 3.1 &"; tsis muaj nyob lawm. Cov cim tshwj xeeb tshiab tam sim no yog USB 3.2 Gen 2x2 nrog cov ntaub ntawv xa tawm siab tshaj plaws txog 20 Gbps.MSLFORCEtau ua raws cov qauv ntawm kev hloov pauv tas li thiab hloov kho tshiab kom muab cov neeg siv khoom nrog USB3.2 GEN2 HUB kawg thiab lwm yam cuam tshuam txog USB3.2 GEN2 10Gbps cov khoom.

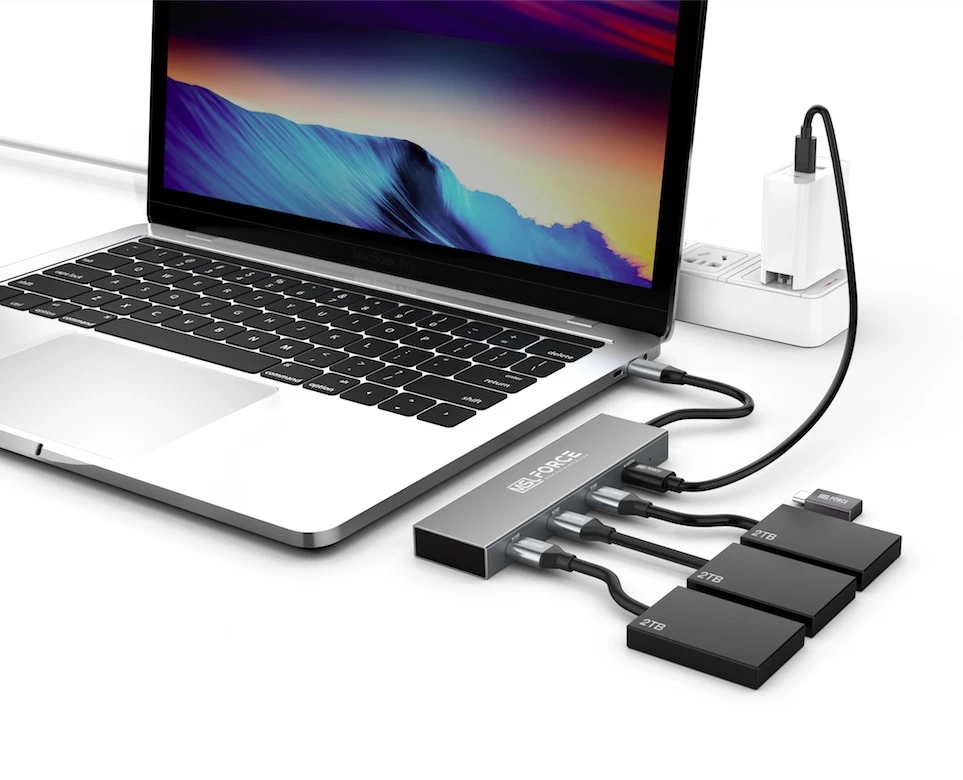

Ntxiv mus, Ua tsaug rau USB Hom-C&kev lag luam; thiab USB PD, peb ntxiv 1 PD chipset sab hauv. Tom qab ntawd tsis tsuas yog lub xov tooj ntawm tes lossis ntsiav tshuaj tuaj yeem raug them, tab sis kuj tseem loj dua lossis muaj zog xws li Gaming lub khoos phis tawj thiab lub khoos phis tawj laptop tuaj yeem muab lub zog. Qhov yuav tsum tau ua ntej yog USB PD txhawb nqa, rau lub cuab yeej ntawm ib sab tes thiab txuas xov tooj ntawm lwm yam. Piv txwv li, Lub Laptop nrog USB Hom-C&kev lag luam; kev sib txuas thiab USB PD txhawb nqa uas txuas nrog lub hwj chim tuaj yeem them lub laptop thaum ib txhij xa cov teeb liab los ntawm lub khoos phis tawj mus rau Qhov Tseeb USB-C cov cuab yeej.
| Cable | OD4.5mm ： P1034-004 (32AWG 1P {{5}} AL) 4C {{13}} 32AWG 1P+32AWG 4C+26AWG 2C+ADB OD4.5 |
| Chipset | VL822 QFN76*1 10Gbps HUB Chip VL102 QFN48*1 PD Chip VL162 QFN28*3 TYPE-C thim rov qab 10Gbps Chip VL163 QFN28*1 Cov ntaub ntawv hloov pauv ntawm Cov Ntaub Ntawv / PD MP9928 QFN20*1 Fais fab tswj Chip SY6282ACC *3 |
| PCB | 6-Txheej |
1. Qhov USB-C HUB no ua tau raws cov qauv hauv qab no.
| S/N | Cov khoom siv hluav taws xob | Txuj | Lus Cim |
| 1 | USB-C txiv neej | USB3.2 GEN2 |
|
| 2 | LED | Qhov Ntsuas LED Xiav |
|
| 3 | USB-C Poj niam PD | Uplink: them PD3.0 5V-20V/100W (kev hloov tus kheej). Dub roj hmab tub ntxhais | Ntawm ob sab |
| 4 | USB-C chaw nres nkoj zoo Data | Maxinum cov ntaub ntawv 10Gbps theoretical, Dub Roj Hmab tub ntxhais ， txhua tus tib usb c txhawb 5V1.5A ~ 3A | kuaj nrog lub xeev khov kho, sau≥ 900mb / s, nyeem≥ 900mb / s |
1.1, USB 3.1 hom C qhov hloov tshiab kawg, siv tau rau pem hauv ntej lossis tom qab ntsaws
1.2 kev ua tiav zoo ntawm hom C rau USB-C Cov Ntaub Ntawv + PD ntau lub ntsej muag sib cuam tshuam
1.3. Cov khoom no siv cov qib high-end 10Gbps VL822 ntawm paradox raws li DATA ua
1.4. Khoom siv: USB 3.1 hom C Devices
1.5, USB-C chaw nres nkoj, tuaj yeem txhawb nqa USB U disk, daim npav nyeem ntawv, Hard disk thiab lwm yam khoom siv nrog USB-C, siab tshaj plaws: 10Gbps
1.6, them nyiaj yug pd3.0 raws tu qauv, 5V ~ 20V / 100W yoog raws
2, Kev Ntsuas ：
| S/N | Paramter | Txhais tau tias | Lus Cim |
| 1 | Lub cev loj: | 107.5*30*10.8 （hli） |
|
| 2 | USB C Lub cev loj: | 14*12.2*6.5 （hli） |
|
| 3 | Tag nrho Txhais tau tias suav nrog cable ： | 125.5 hli |
|
| 4 | Cable ntev ： | 18 hli |
|
| 5 | Net Nyhav ： | 52g |
|
3. Cov khoom lag luam thiab kev ua tau zoo yuav tsum xeem
3.1 qhov pom thiab cim qhia
3.1.1 kev qhia kom paub ua haujlwm
Txhua yam ntaub ntawv xav tau tam sim xws li luam ntawv txhob lo lo ntxhuav, logo, ntawv cim npe, cov lus ceeb toom, thiab lwm yam ntawm txhua ntu yuav tsum meej thiab raug.
3.1.2 cov khoom yuav tsum tau pom
1.Lub plhaub sab nrauv / pluaj yas yuav tsum tsis muaj xim sib txawv thiab xim sib txawv, tsis huv thiab tsis muaj ntaub qhwv nrog txhuam tes;
2.Txhua yam roj hmab yuav tsum tsis txhob deformed, thim rov qab, dawb saum, huab cua lis, dej kaw, daim kab xev, khawb, khawb, khawb, khawb, tawg, cim, thiab pom ntawm qhov deb ntawm 0.6m lossis ib sab caj npab;
3. Kev tshem tawm qhov haum yuav tsum tsis pub ntau tshaj 0.1 hli thiab txawm tias;
Txhob lo lo ntxhuav screen / radium carving yog qhov tseeb, thiab yuav tsum tsis muaj txoj haujlwm yuam kev, tso tseg, ua tsis tiav thiab tsis meej tshwm sim.
| S/N | Qauv’ Muaj nuj nqi xeem cov khoom | Qib | Lus Cim | ||
| Cov khoom xeem | QTY/Qauv | ||||
| 1 | Connector plugging test | 2PCS | A |
| |
| 2 | Cable viav vias xeem | 2PCS |
|
| |
| 3 | Cable Tensile xeem | 2PCS |
|
| |
| 4 | Connector Ntsev tsuag tshuaj ntsuam | 2PCS | A |
| |
| 5 | Tiav-Khoom Ntsev tshuaj tsuag tshuaj ntsuam | / |
|
| |
| 6 | Kev xeem caij nplooj zeeg dawb | 2PCS |
|
| |
| 7 | Kev ntsuas kev co | / |
|
| |
| 8 | ESD Electrostatic xeem | 2PCS | A |
| |
| 9 | Kev ntsuas lub zog ua haujlwm | 1PCS | A |
| |
|
| 10 |
Nyob Hauv Ib Cheeb Tsam Kub-Tsawg Ib puag ncig | 1PCS | A | 10 |
|
| 11 |
kev xeem tawv | / |
|
|
|
| 12 |
Txhob lo lo ntxhuav tshuaj ntsuam / Laser cawv puas puas | 1PCS | A |
|
|
| 13 | RCA ntawv lub hnab puas txhuam | 1PCS | A |
|
|
| 14 | Kuaj sab hauv | / |
|
|
|
| 15 |
Kev ntsuas kub hnub nyoog nce | 1PCS | A |
|
4. Cov khoom siv sib xws tau tshaj tawm ntawm Windows 7/8/10, Mac os 10/10 saum toj no, Linux Ubuntu 12.04 lossis siab dua, Windows Server 2012/2016/2019, Android 4.2 lossis siab dua xov tooj OS, Android Smart TV
| Cov Npe Tau Tshaj | ||||
| Ib feem ntawm Kev Sau Npe piv txwv | ||||
| PC Hom | QAUV PC | Txawb | Ntse xov tooj Qauv | |
|
Kua | Mac Book 12 Ntim |
HuaWei | P40/ P40 Pro | |
| Mac Book Pro 2016/2017/2018/2019 | P30/ P30 Pro | |||
| Mac Book Air 2018/2019/2020 | P20/ P20 Pro | |||
| iPad Pro xyoo 2018/2020 | Imac, Imac rau 2020 | Mate 30/ Mate 30 Pro | ||
|
HuaWei | Phau Ntawv Niam Txiv 14.MateBook 13 | Mate 20/ Mate 20 Pro | ||
| Mate Phau X/XPro | Mate 20 X tau | |||
| Mate Phau Ntawv XPro 2019 | Mate 10/ Mate 10 Pro | |||
| Phau Ntawv Mate/E2019 |
Hwm | Hwm V20 | ||
| Ntsiav tshuaj PC BH-W09 | Honor Nco 10 | |||
| Hwm | Magicbook Pro, Magicbook 2019 | Smartisan
| R1/ Pro2S | |
| Xiaomi | Huab cua 12.5/13.3 Pro15.6 Enchanced version | OPPO | R17 Kev | |
| Asus | 耀 耀 3. 耀 P 3Pro. 耀 耀 X, U4100UN.U5100UQ.ROG |
SamSung | S8/ S8+/ S9/ S9+/ S10/ S10+/ S20/ S20+ | |
| Lenovo | Y7000/Y7000P/Y9000K YOGA6 Pro.Think Pad X1 Carbon/Yoga | Nco 8/ Nco 9 | ||
| Hp | 精灵 精灵 4Pro.EliteBook1050 G1 EliteBook Folio G1 |
|
| |
| Dell | G3/G5/G7. 5000/7000/XPS13.XPS15 |
|
| |
| | Google PixelsBook |
|
| |
| Razer | Blade Stealth yog ib qho kev ua si nrov tshaj plaws hauv ntiaj teb |
|
| |
| Microsoft | Phau Ntawv Nto2.Surface Go |
|
| |
| SDD | Yuav luag 3.5Inch / 2.5Inch SATA Hard Disk |
|
| |
| HUB | Lwm tus txheeb ze HUB |
|
| |
Hom-c khaws hloov tshiab ......
